GRANTS
Fixed Window

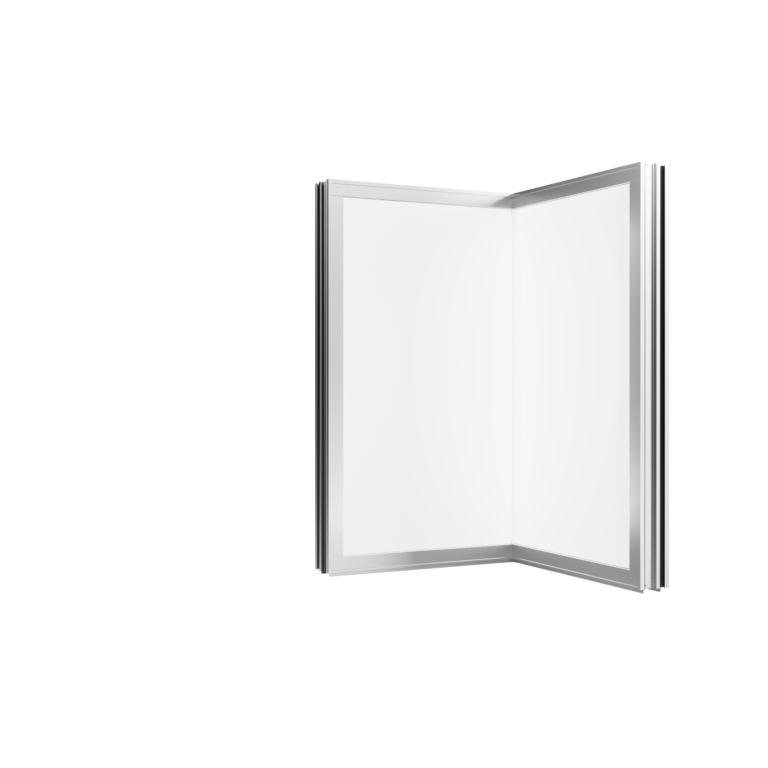

Corner Fixed Window
Natural White
AIR TIGHTNESS
10.7 m3/h.m2 (ASTM E283)
NOISE INSULATION
T-1 : 25 dB (JIS A 1416)
WATER TIGHTNESS
240 Pa (ASTM E300)
WIND PRESSURE
1600 Pa (ASTM E330)
Technical Specification
Frame Depth
101.6 mm
Maximum Height
3500
Height of Sill
50 mm
Glass Thickness
Upto 31.5 mm
